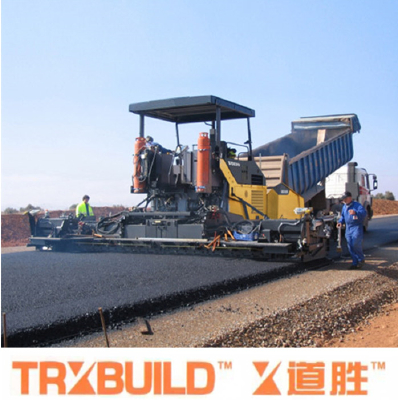

TRXBUILD WLT60B Mechanical Crawler Asphalt Paver 6000MM Width.
--WLT90B is is a time-proven machine in constructing highways, urban roads and parking lots. Equipped with the Deutz technology engine, a centralized lubrication system and an auto-leveling unit, this versatile asphalt paver is a sure way to achieve smooth roads.
--Our China factory has been the domestic market leader in supplying mechanical pavers for past years.
--Mature Technology
With more than 30 years of experience in supplying complete range of mechanical control hydrostatic paver. .
--Ease of Maintenance
With imported technology and compact structurally design with ease of operation and maintenance.
--Screed Flexibility
Come with hydraulic extension up to 5 m and mechanical extension after for different road width paving.
--Feeder System
The system uses screw feeder which blades are of high wearable materials and are easily replaceable.
--Automatic Leveling Sensors
The machine is equipped with two longitudinal and one transverse automatic leveling probes, which reaches the demand of high-grade road smoothness.
--Crawler Travelling Device
Solid and durable crawler travelling device consists of permanent lubricated thrust wheel and track shoes which offers powerful traction and no easy slippage.
--Thrust Wheel Adjustment
Thrust wheel can be adjusted by foating unit and machine height to ensure smooth operation, especially when paving on rough roadbed.
Name | Unit | Parameter | Name | Unit | Parameter |
Max. paving width | mm | 6000 | Screw diameter | mm | Ф350 |
Max. paving thickness | mm | 250 | Screed extension |
| Hydraulic ， mechanical |
theoretical output | t/h | 400 | Basic width | mm | 3000 |
Paving speed | m/min | 2.00-3.60 | Vibrator amplitude | mm | / |
Travel speed | km/h | 0.90-2.86 | Vibrator strike times | time/min | / |
Driving manner |
| Mechanical | Screed vibrator frequency | Hz | 0-50 |
Overall weight | t | 16-17 | Screed heating method |
| Fuel heating, automatic ignition |
Engine model and power |
| F6L913DEUTZ,86KW | Fuel tank capacity | L | 190 |
Track shoe width | mm | 300 | Hydraulic oil tank capacityL | L | 210 |
Hopper capacity | t | 12 | Centralized lubrication |
| Made in China |
Automatic leveling |
| Made in China | Material level instrument |
| / |
