- Size: 9655x2500x3505mm
- Place of Origin: CHINA
- Brand Name: TRXBUILD
- Model Number: ZJY5251TYH
- Weight: 16400.000 kg

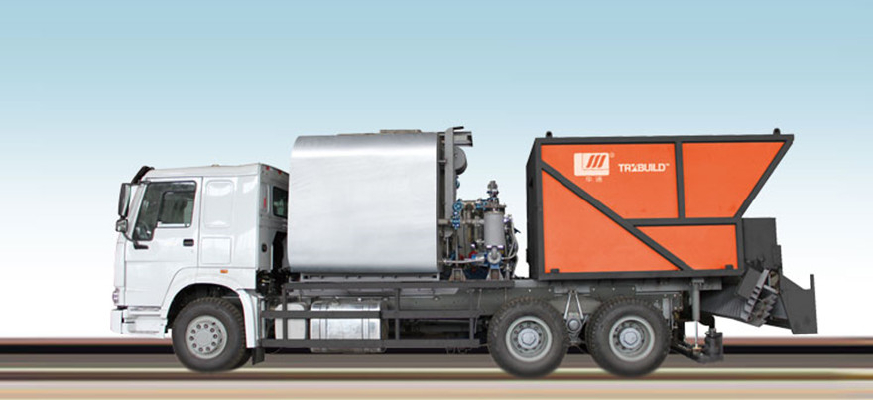

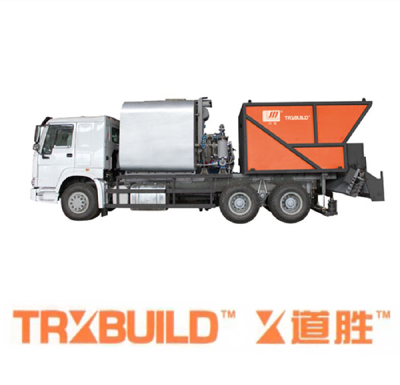

TRXBUILD SYNCHRONOUS CHIP SEALER 2250-3500 SPRAY WIDTH
ZJY5251TYH synchronous chip sealer spread asphalt and chippings at the same time, it's a special equipment make asphalt and aggregate have enough surface contacting area, so they can reach maximum viscosity. The vehicle is developed and made by absorbing domestic and oversea advantage of competitors, the vehicle is made on the basis of secondary chasis from SINOTRUCK, and composed by transmission device, hydraulic device, asphalt tank, aggregate tank, control device etc. The advantage is high automation,even spread,easy operation, big load capacity,high efficiency etc.
Features:
• All distributed requirement can be finished in the cab;
• Intelligent controlled asphalt distribution volume and precise distribution. The spreading procedure can be controlled by the computer, and the spreading volume is not affected by the vehicle speed;
• The advanced heating system and circulating system ensure the smooth pipeline and nozzle;
• Settle the issue of monolayer of the both sides to improve the sealing quality. The asphalt and gravel distribution could be controlled independently.
Model | ZJY5251TYH | |
Model of chasis | SINOTRUK ZZ1257M4347C | |
Type | Flat head ， 6 × 4 rear driven | |
Model of engine | WD615.93E | |
Rated power （ kw ） | 213kW | |
Cab capacity | 2 people | |
Total vehicle weight （ kg ） | 16400 | |
Max. weight （ kg ） | 25000 | |
Wheel distance （ mm ） | Front wheel | 2041 |
Rear wheel | 1830 | |
Axle distance （ mm ） | 4325 1350 | |
front overhang （ mm ） | 1500 | |
back overhang （ mm ） | 2480 | |
Max. speed （ km/h ） | 9 0 | |
Work travel speed （ km/h ） | 1.2 ~ 6.5 | |
Asphalt tank rated capacity （ L ） | 6000 | |
Aggregate tank capacity （ t ） | 10 | |
Aggregate grain size （ mm ） | 5-25 | |
Maximum spread width （ m ） | 3.5 | |
Asphalt spread volume ( L/m2 ） | 0. 125 ~ 3 . 5 | |
Allowed viscosity of asphalt medium （ Cst ） | ≤ 300 | |
Overall size (mm) | 9655 × 2500 × 3505 | |
