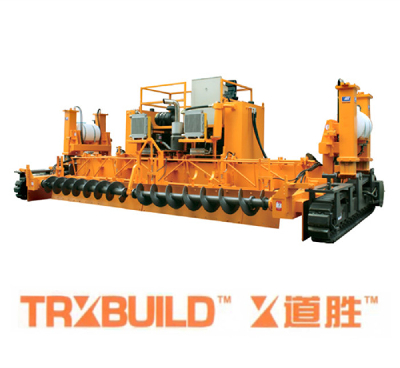

TRXBUILD 4~8m Width Cement Slip Form Concrete Paver Machine.

Main performance characteristics of the 1220MAXI-PAV SLIPFORM

1．German original VOLVO water cooling engine with strong power and reliable work.

2．Full hydraulic driven, integrated with mechanical, electrical and hydraulic technology, multi-controllers control, graphic display; integrated failure diagnose, condition display, alarm alert etc, the machine is more reliable.

3 ． The sc rapper and distributor can be controlled from either side of the paver independently.

4 ． Broad view for drivers, convenient to watch.

5 ． All the control elements are centrally mounted on the control panel so as to be operated conveniently.

6 ． The material of screws and crown pan is imported world class wearable material.

7 ． Automatic leveling device, meet the requirement of high grade road with longitudinal flatness 3mm/3m, transverse slope 2/1000.

8 ． Crawlers travelling device composed by life-time lubricated thrust wheels and track shoes, durable with good adhesive force, not easy to skid.

1.Main parameters ：

Basic paving width --------------------------- 4250 mm

Maximum paving width ----------------------- 8000 mm

Paving thickness -----------------------------  0-350mm

2.Overall size ：

Length -------------------------------------------- 4020mm

Width ---------------------------------------------- 9290mm

Height --------------------------------------------- 2770mm

3.Performance ：

Paving speed------------------------------------ 0 ～ 10m/min

Travelling speed---------------------------------0-1.5 km/h

Flatness -----------------------------------------  ≤3mm/3m

Grade ability At work:-------------------------≥10%; Idle:≥15%

4.Engine ： ----------------------------------------- VOLVO

Model ----------------------------------------------- TAD721VE

Type 6 cylinder; water-cooling

Power ------------------------------------------------ 195kW/2300rpm

We also have the 3M~6M model.  Please contact me with you requirements.
