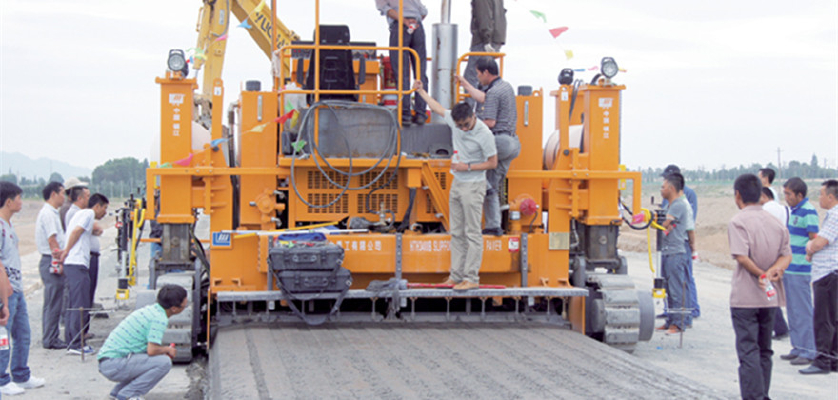

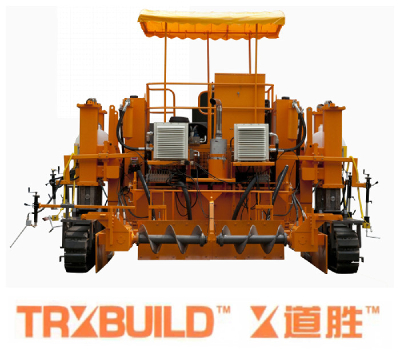

TRXBUILD 3~6m Width Cement Slip Form Concrete Paver Machine.

Main performance characteristics of the 3400B

1 ． Original VOLVO water-cooling engine is used to supply driving and reliable powers.

2 ． Full hydraulic driven, with CAN communications management bus and distributed control structure, reduce failure rate.

   3 ． With failure intellective diagnose function, alarm for potential failure.

4 ． The screw can be controlled from either side of the paver, so the effect of feeding is perfect

5 ． The operator has wide view, easy to observe.

6 ． The material of screws and crown pan is wearable and advanced in the world.

7 ． Because of the using of automatic leveling, the lengthwise flatness is not exceed 3mm /3m， the transverse grade :2 /1000.

8 ． Crawlers with life-time lubricated thrust wheels and track shoes wear well and are difficult to skid.

9 ． It can accomplish the cement concrete paving at one time , and finish middle piling and side piling.

Main parameters ：

Basic paving width-------------------------------------------- 3400 mm

Maximum paving width-------------------------------------- 6000 mm

Maximum paving thickness--------------------------------- 0-350mm

Overall weight ------------------------------------------------ 22T

Overall size ：

Length-----------------------------------------------------------   4020mm

Width  ----------------------------------------------------------  7290mm

Height-----------------------------------------------------------   2770mm

Performance ：

Paving speed  --------------------------------------------------- 0 ～ 10m /min

Travel speed---------------------------------------------------   0 ～ 1.5km/h

Flatness (surveyed by 3 meters ruler)  ------------------ 3mm/3m

Grade ability At work:----------------------------------------------- ≥ 10%;

Engine ： ----------------------------------------------------------------  Volvo

Model-------------------------------------------------------------------- TAD620VE

Type 6 cylinders; water-cooling

Power  ------------------------------------------------------------------- 145kW/2300r/min

We also have the 4M~8M bigger model.  Please contact me with you requirements.
