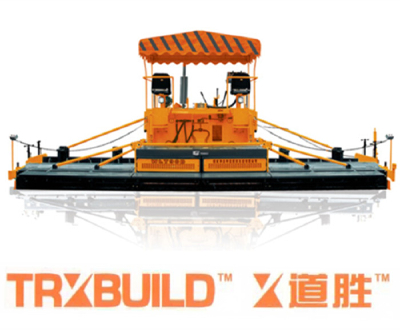

TRXBUILD HUATONG SPS90 HYDRAULIC ASPHALT PAVER MACHINE
SPS, SPSE and EPC hydraulic pavers of TRXBUILD-Huatong adopt the imported components, and they are suitable for paving highway base and surface. With advanced technology, they are highly automated, user friendly and efficient pavers.
EPC multi-function hydraulic paver is equipped with the Volvo engine and SPS and SPSE multi-function hydraulic paver is equipped with Shangchai engine. The machine is equipped with the hydraulic extending screed which is suitable for the road paving of different width. Moreover, it is equipped with an auto-leveling unit, ensuring that it is possible to achieve smooth roads.
Name | Unit | Parameter |
Max. paving width | mm | 9000 |
Max. paving thickness | mm | 320 |
theoretical output | t/h | 700 |
Paving speed | m/min | 0-19 |
Travel speed | km/h | 0-2.9 |
Driving manner |
| Hydraulic |
Overall weight | t | 21-27 |
Engine model and power |
| D6114ZG1BShangchai,140KW |
Track shoe width | mm | 320 |
Hopper capacity | t | 14 |
Automatic leveling |
| Made in China (assembled with imported parts) |
Screw diameter | mm | Ф400 |
Screed extension |
| Mechanical |
Basic width | mm | 3000 |
Vibrator amplitude | mm | Main ： 5 ， Auxiliary ： 0,3,6,9,12 |
Vibrator strike times | time/min | 0-1500 |
Screed vibrator frequency | Hz | 0-50 |
Screed heating method |
| Gas heating |
Fuel tank capacity | L | 345 |
Hydraulic oil tank capacity | L | 320 |
Displayer |
| AT3Graph displayer from Germany |
Controller |
| PLC2038 Finland |
Centralized lubrication |
| Import |
Drop-off preventive device |
| With |
Material level instrument |
| TYP Series Made in China |
|
|
|
