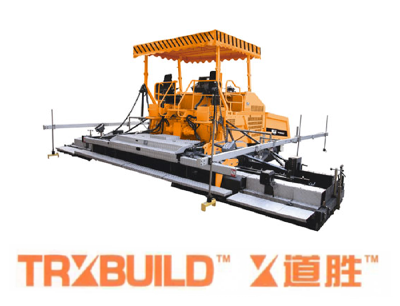

TRXBUILD HUATONG SPS125 HYDRAULIC ASPHALT PAVER MACHINE
SPS, SPSE and EPC hydraulic pavers of TRXBUILD-Huatong adopt the imported components, and they are suitable for paving highway base and surface. With advanced technology, they are highly automated, user friendly and efficient pavers.
EPC multi-function hydraulic paver is equipped with the Volvo engine and SPS and SPSE multi-function hydraulic paver is equipped with Shangchai engine. The machine is equipped with the hydraulic extending screed which is suitable for the road paving of different width. Moreover, it is equipped with an auto-leveling unit, ensuring that it is possible to achieve smooth roads.
Name | Unit | Parameter | Name | Unit | Parameter |
Max. paving width | mm | 12500(stablized soil 9500) | Basic width | mm | 3000 |
Max. paving thickness | mm | 320 | Vibrator amplitude | mm | Main ： 5 ， Auxiliary ： 0,3,6,9,12 |
theoretical output | t/h | 800 | Vibrator strike times | time/min | 0-1500 |
Paving speed | m/min | 0-19 | Screed vibrator frequency | Hz | 0-50 |
Travel speed | km/h | 0-2.9 | Screed heating method |
| Gas heating |
Driving manner |
| Hydraulic | Fuel tank capacity | L | 345 |
Overall weight | t | 25-29.5 | Hydraulic oil tank capacity | L | 320 |
Engine model and power |
| TAD720VE VOLVO,174KW | Displayer |
| AT3Graph displayer from Germany |
Track shoe width | mm | 320 | Controller |
| PLC2038 Finland |
Hopper capacity | t | 14 | Centralized lubrication |
| Import |
Automatic leveling |
| Made in China (assembled with imported parts) | Drop-off preventive device |
| With |
Screw diameter | mm | Ф400 | Material level instrument |
| TYP Series Made in China |
Screed extension |
| Hydraulic or mechanical |
|
|
|
