TRXBUILD LXH1300D Road Milling Machine, 1.3M Milling Width

TRXBUILD LXH1300D Road Milling Machine, 1.3M Milling Width

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Quarter
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1999-04-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  10640x2430x3100mm
  • Place of Origin:  CHINA
  • Brand Name:  TRXBUILD
  • Model Number:  LXH1300D
  • Weight: 15800.000 kg

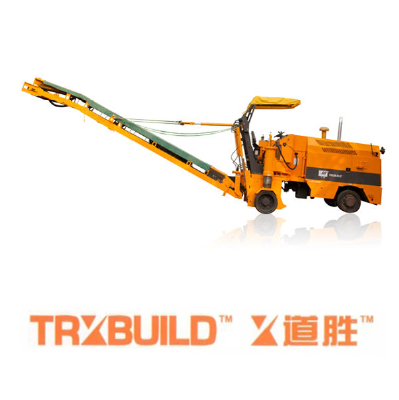

TRXBUILD LXH1300D ROAD MILLING MACHINE 1300MM MILLING WIDTH, WHEEL TYRE TYPE



LXH/LXZY series milling machines adopt the most excellent milling drum design, fully considering the stability and productivity.
The configuration of LXH/LXZY series milling machines features excellent performance and strong power. Adopt the reliable SHANGCHAI D6114 supercharged air-intake water-cooled engine and full hydraulic drive system, which can reduce the impact to the machine during milling.
Features
• Imported tyres feature high wear resistance and long service life, making sure the adhesive performance of depth milling working.
• Adopt full hydraulic drive system to reduce the machine impact during milling operation, and equip with the imported pumps, motors, and high-quality hydraulic parts to ensure the machine reliability. The milling drums adopt the optimized design.
• The milling cutters are imported spirally arrayed, making sure the stable operation and high productivity.

Name

Unit

Parameter

Name

Unit

Parameter

Milling Width

mm

1300

Control Mode

Electronic Control

Milling Depth

mm

0-120

Automatic Leveling

Optional

Milling Speed

m/min

0-15

Conveying Belt Width

mm

450

Travel Speed

km/h

0-13

Max. Conveying Height

mm

3500

Engine Model

D6114ZG1B

Diesel Oil Tank Capacity

L

240

Engine Power

kW

140

Water Tank Capacity

L

350

Cutter Quantity



110

Hydraulic Oil Tank Capacity

L

300

Tyre Diameter

mm

660

Overall Weight

kg

15800

Grade ability

%

≥15

Appearance Dimensions

mm

10640×2430×3100

Drive Mode

Full Hydraulic
