- Size: 10640x2430x3100mm
- Place of Origin: CHINA
- Brand Name: TRXBUILD
- Model Number: LXH1000D
- Weight: 15500.000 kg

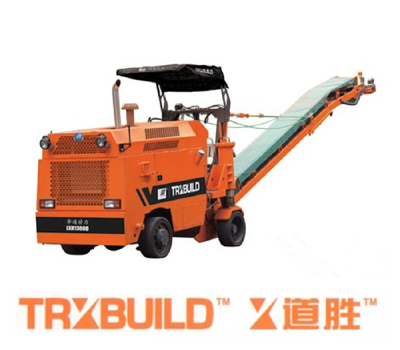

TRXBUILD LXH1000D ROAD MILLING MACHINE 1300MM MILLING WIDTH, WHEEL TYRE TYPE
LXH/LXZY series milling machines adopt the most excellent milling drum design, fully considering the stability and productivity.
The configuration of LXH/LXZY series milling machines features excellent performance and strong power. Adopt the reliable SHANGCHAI D6114 supercharged air-intake water-cooled engine and full hydraulic drive system, which can reduce the impact to the machine during milling.
Features
• Imported tyres feature high wear resistance and long service life, making sure the adhesive performance of depth milling working.
• Adopt full hydraulic drive system to reduce the machine impact during milling operation, and equip with the imported pumps, motors, and high-quality hydraulic parts to ensure the machine reliability. The milling drums adopt the optimized design.
• The milling cutters are imported spirally arrayed, making sure the stable operation and high productivity.
Name | Unit | Parameter | Name | Unit | Parameter |
Milling Width | mm | 1000 | Control Mode |
| Electronic Control |
Milling Depth | mm | 0-150 | Automatic Leveling |
| Optional |
Milling Speed | m/min | 0-15 | Conveying Belt Width | mm | 450 |
Travel Speed | km/h | 0-13 | Max. Conveying Height | mm | 3500 |
Engine Model |
| D6114ZG1B | Diesel Oil Tank Capacity | L | 240 |
Engine Power | kW | 140 | Water Tank Capacity | L | 350 |
Cutter Quantity |
| 92 | Hydraulic Oil Tank Capacity | L | 300 |
Tyre Diameter | mm | 600 | Overall Weight | kg | 15500 |
Grade ability | % | ≥15 | Appearance Dimensions | mm | 10640×2430×3100 |
Drive Mode |
| Full Hydraulic |
|
|
|
Please contact me for more details and best price.
Mr. Vincent Leonardo
Mobile: 86-15275144907
Whatsapp/Viber/Weichat: 86-15275144907
