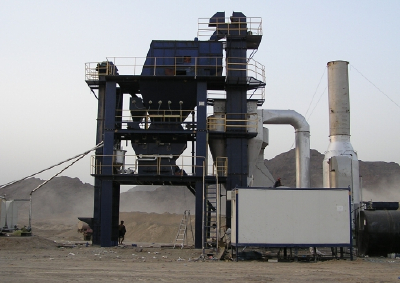

CHINA TRXBUILD LJB1500 90-120T/H CAPACITY ASPHALT MIXING PLANT FOR SALE
Items Unit Parameters Output Capacity t/h 90-120 Mixer kg/batch 1500 Dryer mm ф200 0 ×8000 Vibrating Screen 4×4 Accumulated Aggregate Measuring Accuracy ±0.5% Powder Measuring Accuracy ±0.35% Asphalt Measuring Accuracy ±0.25% Noise Level dB(A) ≤70 Dust Emission mg/Nm3 Water-Type Dust Collector(Optional Bag Dust Collector ） Cold Feed Hopper Capacity m3 8×4
Configuration of LJB1500 Asphalt M ixing P lant Item System 1 Cold aggregate supply system 8m³ ， 4 hoppers, screen set 4 decks,4 sizes 2 Belt feed system 3 dry drum , China Yanshi burner 4 cyclone filter&duct system 5 bag filter OR water filter 6 filler elevator 7 screen system 8 aggregate hot bin 9 aggregate measure system 10 filler measure system 11 bitumen measure system 12 bitumen spray system 13 mixing system 14 pneumatic system 15 frame system 16 control system including cable from control room to electrical parts; AC room 17 bitumen storage system ; 20m³ asphalt tank * 2 units 18 bitumen supply system including bitumen pump, oil discharge pool 3.7m³ 19 hot oil heating system , 600 , 000Cal/h,Italy burner 20 fuel oil supply system Diesel tank 20m³ x1 unit ; heavy oil tank 20m³ x1 unit 21 3T Decanter for solid asphalt
Please contact me for details specifications and price.
Mr. Vincent Leonardo
Mobile: +86-15275144907 (whatsapp/viber)

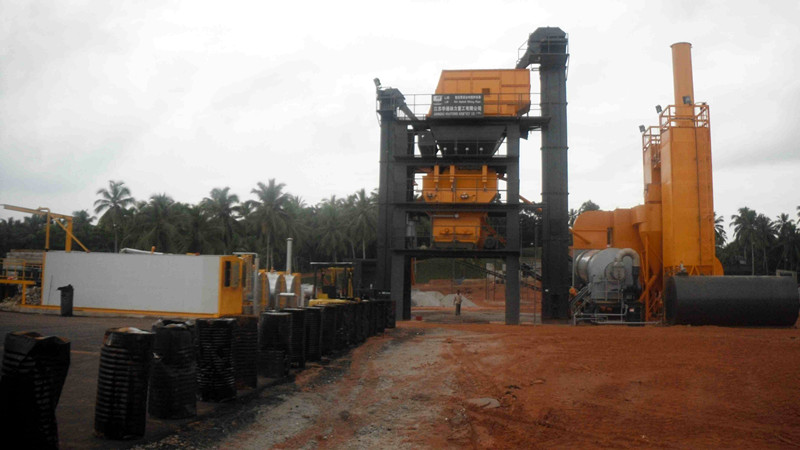

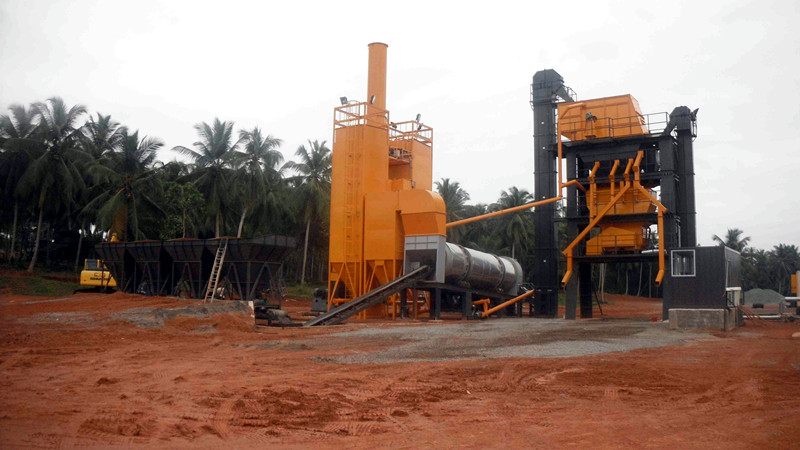

OUR PLANT IN SRI LANKA
