- Size: 9178x2600x3458mm
- Place of Origin: CHINA
- Brand Name: TRXBUILD
- Model Number: PY185
- Weight: 15000.000 kg

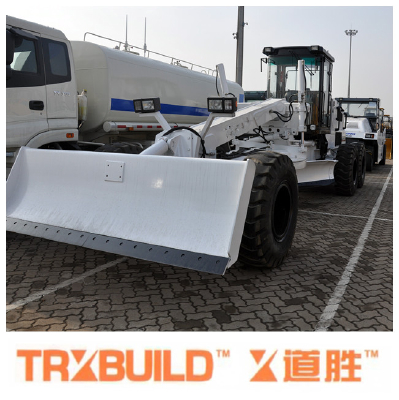

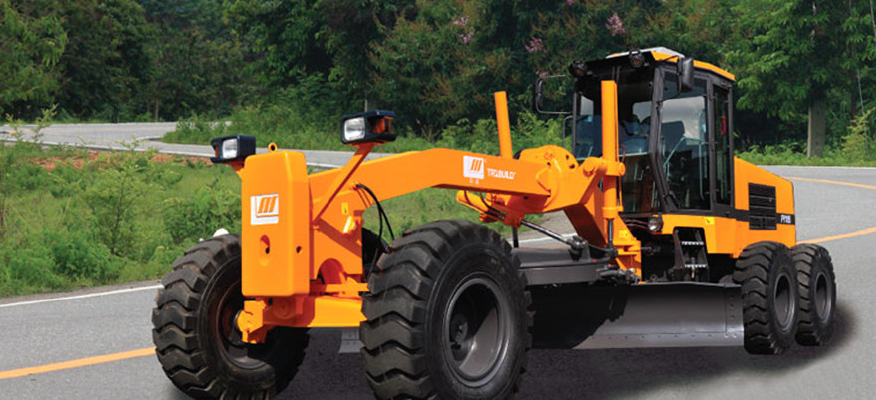

PY185 MOTOR GRADER WITH FRONT BOARD AND REAR RIPPER
The product is widely used in road construction, trenching, snow removing, site preparation and fine grading. PY165 is a powerful and versatile earthmoving machinery, featuring safe and comfortable operation, convenient control, high efficiency, flexible, small turning radius and good maneuverability.
• It adopts special front/rear axle for grader use, ensuring reliable power output and safety.
• The articulated frame with small turning radius of front wheel contributes to flexibility and maneuverability.
• The electro-hydraulic control power shift transmission with 6 forward gears and 3 reverse gears ensures the reliability and flexibility.
• 3-section rear drive axle, equipped with No-SPIN self-lock differential.
• The brake system adopts internationally advanced brake control technology.
• The adjustable operation console, seat, control lever, and instruments are reasonably allocated for convenient use.
• Optional multiple working devices are available: front bulldozing blade, rear scarifier, and automatic leveling device.
| Items | Unit | Parameters | Items | Unit | Parameters |
|---|---|---|---|---|---|
| Rated Power/Revs | KW/rpm | 140/2300 | Max.Turning Angle of Front Wheel | ±50 | |
| Dimension | mm | 9172×2600×3464 | Max.Inclination Angle of Front Wheel | ±17 | |
| Machine Weight (Standard) | Kg | 15500 | Max.Swing Angle of Front Wheel | ±15 | |
| Forward Speed | Km/h | 5,9,12,20,25,40 | Max.Swing Angle of Balance Box | ±15 | |
| Reverse Speed | Km/h | 5,12,25 | Max.Articulated Steering Angle | ±25 | |
| Max. Gradeability | 20 | Blade Length×Chord Height | mm | 3965×610 | |
| Min. Turning Radius | m | 7.8 |
We can produce other road building machines like paver, milling machine, asphalt mixing plant, chip sealer and others. Please contact me for price and details.
Vincent Liang
Mobile: 86-15275144907 (whatsapp/viber)
