CHINA TRXBUILD 90T Asphalt Mixing Plant

CHINA TRXBUILD 90T Asphalt Mixing Plant

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Quarter
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1999-04-05
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1
  • Place of Origin:  CHINA
  • Brand Name:  TRXBUILD
  • Model Number:  LJB1200C
  • Weight: 1.000 kg

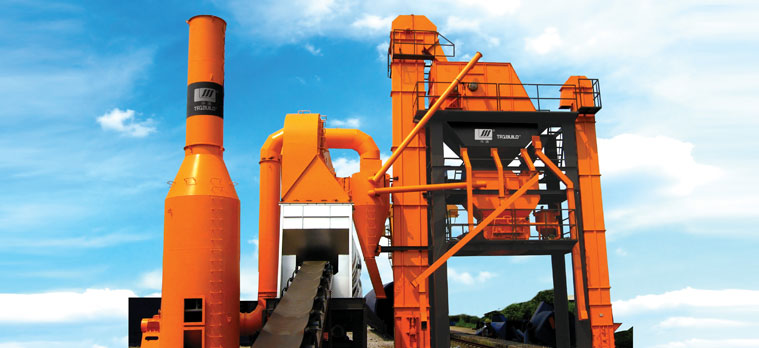

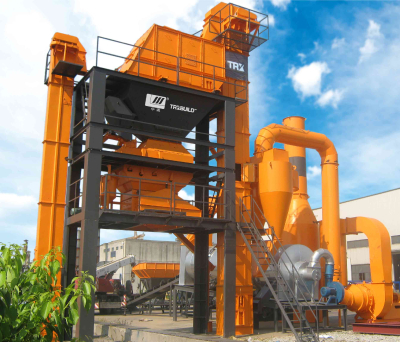

CHINA TRXBUILD LJB1200C 90T ASPHALT MIXING PLANT FOR SALE


70~90T asphalt mixing plant

  LJB1200C

Capacity: 72-96Tons/hour

Mixer: 1200kg/batch

Drying drum burner: 1800*8000mm

Vibrating screen: 4 floors 4 sizes

Accumulated aggregate measuring accuracy: +/- 0.5%

Filler measuring accuracy: +/- 0.35%

Bitumen measuring accuracy: +/- 0.25%

Noise Level: <70

Dust Draining Density: water filter

Hopper capacity: 6*4 m3

Main Parts List

Item

System

Remarks

1

Cold aggregate supply system

4 hoppers

2

Belt feed system



3

dry drum

China burner with fuel of diesel

4

cyclone filter and duct system



5

water filter



6

 filler elevator



7

 screen system

4 floors and 4 sizes

8

aggregate hot bin



9

aggregate measure system

Measure accuracy  ± 0.5%

10

 filler measure system

Measure accuracy  ± 0.35%

11

bitumen measure system

Measure accuracy  ± 0.25%

12

 bitumen spray system



13

 mixing system



14

pneumatic system



15

frame system



16

control system including cable and AC room

including cable from control room to electrical parts;  AC room

17

 bitumen storage system

20m ³  asphalt tank * 2 pcs

18

 bitumen supply system

including bitumen pump,
oil discharge pool 3.7m ³

19

 hot oil heating system

Italy Riello Burner,600000KCal/h

20

fuel oil supply system

Diesel tank 10m ³  tank 1 pc

21

3T bitumen decantor

 for solid asphalt

Guarantee Period: 12 months from the date of commissioning,(easy abrasion parts excluded)
After-sale Service: 2 engineers of 45 days without service charge. If exceed 45 days, buyer should pay 100 USD/Day/Person. The buyer is requested to be responsible for engineers ’  food, hotel and local traffic charge.

Please contact me for details specifications and price.

Mr. Vincent Leonardo

Mobile: +86-15275144907 (whatsapp/viber)

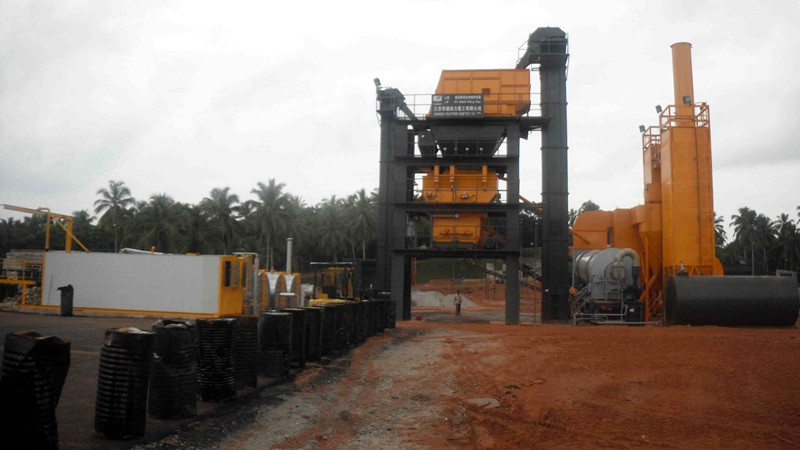

PHOTOS for our plant in Sri Lanka




  • Size:  1
  • Place of Origin:  CHINA
  • Brand Name:  TRXBUILD
  • Model Number:  LJB1200C
  • Weight: 1.000 kg
